BlueJay High Temp 45 degree Formed Elbow
Product Details:
- Temperature resistant silicone liner.
- Reinforced with multiple plies of polyester.
- UV and ozone resistant.
- Rated for -40°F to 350°F [-40°C to 177°C].
- Conforms to SAE J20 R1 Class A.
- Durometer: 65-75 Shore A.
- Radial Dilation less than 15%.
- 5 year or 100,000 mile warranty.
Temporarily Out of Stock
Formed from multiple layers of silicone rubber with polyester reinforcing fabric between the layers, the BlueJay hoses can withstand temperatures from -40° F to 350° F (-40° C to 177° C) and pressures as noted above (varies by size).

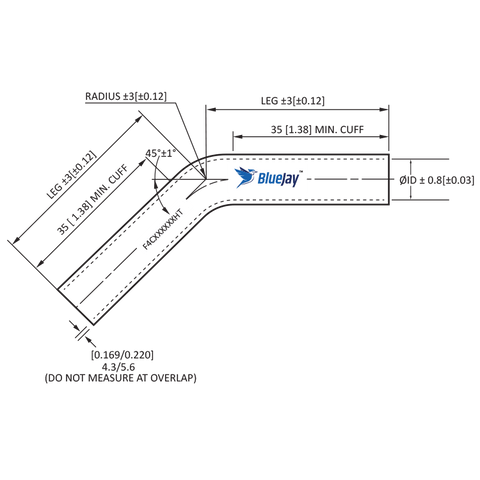

This BlueJay 45 degree elbow has a bright blue smooth gloss finish for easy wipe-down cleaning. Leg lengths are measured from the centerline of the opposite leg.
